ISO 9001 Certified

Filtration

Keep Your Fluids Clean. Your Systems Protected.

BG

Bag Filter Media
CD

Cartridge Filter Media
DYS

Bag Filter Vessels
DYC

Cartridge Filter Vessels

Product Lines

Dynalene's filtration systems remove solid particulates from heat transfer fluids, glycols, hydrocarbons, and silicone fluids — protecting pumps, valves, and heat exchangers while extending fluid service life. Available in bag, sock, and cartridge configurations from 1 to 100 GPM.

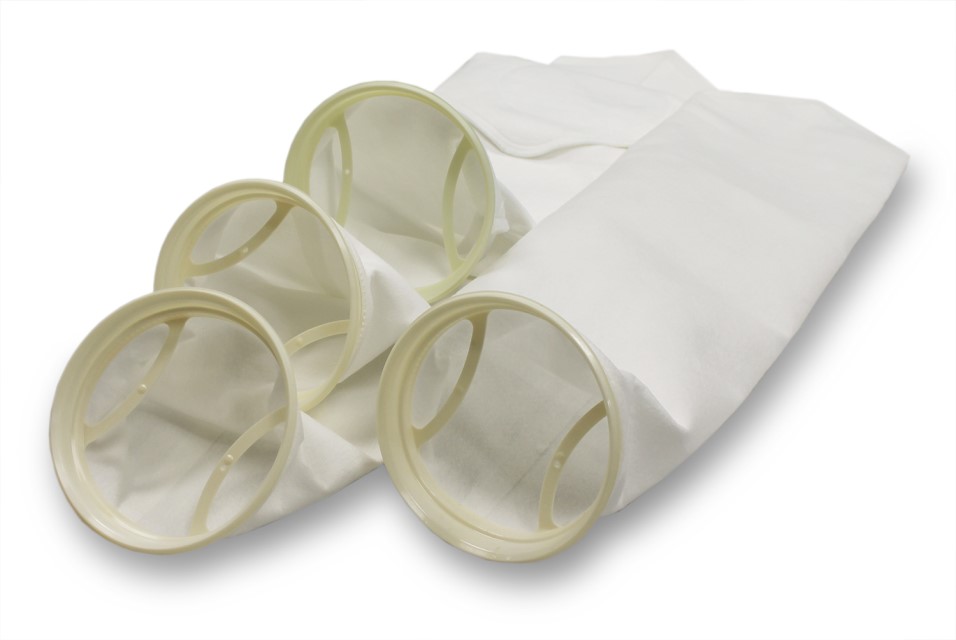

BG SERIES

Bag & Sock Filter Media

Felt filter bags in Nylon, Polypropylene, Polyester & Teflon® — 1 to 25 µm — -50°F to 450°F

The Dynalene BG Series felt filter bags deliver high-efficiency particulate removal across all Dynalene heat transfer fluids and a wide range of industrial chemistries. Available in four materials to cover operating temperatures from -50°F to 450°F, with 1–25 µm micron ratings and up to 2× the dirt-holding capacity of standard filter bags. Designed for use with DYS Series filter vessels and compatible third-party housings. Thermally welded seams prevent bypass under high differential pressure.

Specifications

  • Micron ratings: 1, 5, 10, 25 µm
  • Temp range: -50°F to 450°F
  • Polyester: up to 275°F (135°C)
  • 2× dirt holding capacity vs. standard
  • Bag sizes: 1, 2, 3, 4
  • Polypropylene: up to 220°F (104°C)
  • Teflon®: up to 450°F (232°C)
  • Compatible with all Dynalene fluids

Materials Available

  • Polypropylene felt
  • Nylon mesh / felt
  • Polyester felt
  • Teflon® (PTFE) felt

Resources

Product Brochure

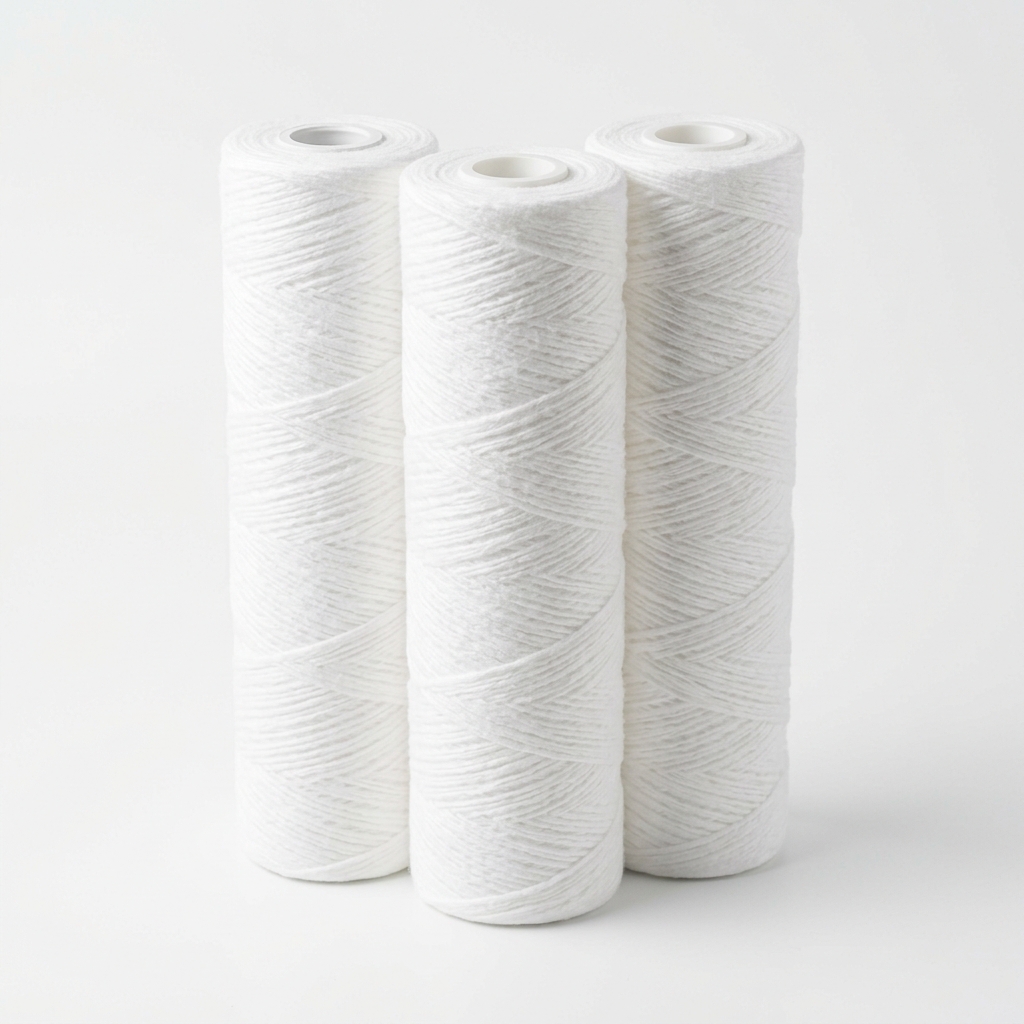

cd SERIES

Cartridge Filter Media

Progressive depth filtration with high sediment-holding capacity — 0.5 to 200 µm

The Dynalene CD Series cartridge filters protect processes by providing high efficiency filtration. These depth filters offer a choice of filtration media, support cores, and materials to enable compatibility with most applications. For potable water to aggressive chemicals, the CD Series cartridges provide progressive depth filtration with high sediment-holding-capacity. Filter cartridges are available from 0.5 to 200 micron ratings for polishing to pre-filtration. These cartridges are systematically tested with Dynalene fluids for compatibility and are available for purchase in small and large quantities.

Specifications

  • Micron ratings: 0.5 to 200 µm
  • Temp range: -70°F to 450°F (-45°C to 232°C)
  • Compatible with all Dynalene fluids
  • Cartridge lengths: 10, 20, 30, and 40 inch
  • Cores: Stainless Steel, Polypropylene

Materials Available

  • Cotton
  • Nylon
  • Fiberglass
  • Polypropylene
  • Polyester

Resources

Product Brochure

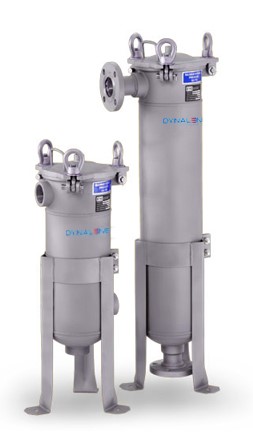

DYS SERIES

Bag & Sock Filter Vessels

Heavy-duty bag filter housings — 15 to 100 GPM — Carbon Steel, 304 SS & 316 SS

The Dynalene DYS Series sock and bag filter vessels are heavy-duty housings engineered for high-flow particulate removal in industrial heat transfer and process fluid systems. Fluid enters the side inlet, passes through the BG Series filter bag supported by an internal stainless steel basket, and exits through the bottom outlet — clean and particulate-free. Available in four sizes in carbon steel or stainless steel with NPT or flanged connections and ASME code stamping upon request.

Specifications

  • Flow rate: 15 to 100 GPM
  • Max temp: 250°F (121°C)
  • Gaskets: Buna-N, Viton®, Teflon®
  • Bag sizes: 1, 2, 3 & 4
  • Stand: Custom tripod leg assembly
  • Pressure rating: 150 PSI
  • MOC: Carbon Steel, 304 SS, 316 SS
  • Connections: 1–4" NPT or flange
  • Basket: 316 SS, 9/64" perforations
  • ASME code stamping available

Features

  • Swing-bolt lid — tool-free bag changeout
  • Side-in / bottom-out or side-in / side-out
  • SS basket protects bags at high ΔP
  • Custom multi-bag housings available

Resources

Product Brochure
DYC SERIES

Cartridge Filter Vessels

Fine particulate polishing from 0.5 µm — 1 to 100 GPM — 1 to 50 cartridges per vessel

The Dynalene DYC Series cartridge filter vessels deliver precision fine-particle removal down to sub-micron levels. Fluid flows from outside to inside the CD Series depth filter cartridges, with particulates trapped within the cartridge media matrix. Configurable from 1 to 50 cartridges for flows up to 100 GPM, in carbon steel or stainless steel with NPT or flanged connections. Ideal for critical fluid polishing applications where tight particulate control is required.

Specifications

  • Flow rate: 1 to 100 GPM
  • Cartridge count: 1 to 50 per vessel
  • Micron ratings (CD Series): 0.5–200 µm
  • Gaskets: Buna-N, Viton®, Teflon®
  • Stand: Custom tripod leg assembly
  • Pressure rating: 150 PSI
  • Cartridge lengths: 10, 20, 30, 40 inch
  • MOC: Carbon Steel, 304 SS, 316 SS
  • Connections: 1–4" NPT or flange
  • ASME code stamping available

Features

  • Sub-micron filtration to 0.5 µm
  • High dirt-holding capacity — low pressure drop
  • Swing-bolt lid — tool-free cartridge swap
  • Custom inlet/outlet orientation available

Resources

Product Brochure

Where It Works

Applications

Dynalene filtration systems protect any closed-loop fluid system where solid particulates accumulate and risk damaging pumps, valves, heat exchangers, and fluid integrity.

Heat Transfer Fluid Loops

Removes particulate contamination from glycol-water, hydrocarbon, and silicone HTF closed loops — preventing pump wear, heat exchanger fouling, and valve erosion in industrial process temperature control systems.

DYS / DYC Series

EV & Battery Cooling Systems

Filters particulates from battery thermal management (BTMS) coolant loops — protecting sensitive cooling plates, connectors, and electronics from abrasive contamination in high-voltage EV systems.

DYC Series

Data Center Liquid Cooling

Maintains fluid purity in direct liquid cooling (DLC) and CDU loops for AI and HPC infrastructure — preventing micro-particle deposits on cold plates and manifold blockages in high-density server cooling systems.

DYC Series

Industrial Process Cooling

Filters glycol-water, potassium formate, and hydrocarbon process fluids in manufacturing, chemical, and food-grade cooling loops — meeting process cleanliness requirements and protecting heat exchanger surfaces.

DYS / DYC Series

Fluid Polishing & Reconditioning

Removes solid degradation byproducts, corrosion particles, and scale from aged heat transfer fluids — restoring fluid clarity and extending fluid service life without a full drain-and-recharge.

DYS / DYC / BG Series

Semiconductor & Lab Systems

Provides sub-micron particle control for precision cooling in semiconductor fabs, laser systems, and laboratory equipment — where particulate contamination causes immediate process yield loss.

DYC Series

Technical Library

Filtration Resources

Technical guides, product catalogues, and Dynalene resources on fluid filtration and particulate control.

PRODUCT CATALOGUE

Dynalene Filtration Product Catalogue — DYS, DYC & BG Series
PRODUCT GUIDE

Dynalene Filtration Systems — Full Product Overview & Selection Guide
PRODUCT GUIDE

DYS Series Bag Filter Vessels — Sizing, Specifications & Options
PRODUCT GUIDE

DYC Series Cartridge Filter Vessels — Sizing, Specifications & Configurations
PRODUCT GUIDE

BG Series Filter Bags — Material Selection, Micron Ratings & Compatibility
SYSTEM GUIDE

Dynalene Fluid Cleaning & Testing Equipment — Complete Portfolio
TECHNICAL FAQ

How Do I Know If My Heat Transfer Fluid Needs Filtration?
ENGINEERING GUIDE

Selecting the Right Filter for Your HTF Application — Bag vs. Cartridge

Why Dynalene

The Complete Fluid + Filtration Solution

Dynalene manufactures both the heat transfer fluid and the filtration system engineered to keep it clean — no other supplier offers this fully integrated, matched solution.

Fluid + Filter Integration

Matched filter media, micron rating, and vessel for your exact Dynalene fluid chemistry.

Free Filtration Testing

Send a fluid sample — Dynalene Labs tests it and recommends the ideal filter configuration.

30+ Years of HTF Expertise

Three decades of fluid chemistry expertise informs every filtration system recommendation.

Fully Custom-Buildable

Custom MOC, gaskets, connections, flow rates, leg dimensions — built to your exact spec.

ASME Code Available

ASME Section VIII pressure vessel code stamping available on DYS and DYC Series vessels.

Wide Temperature Range

BG Series bags rated -50°F to 450°F — covers cryogenic to high-temperature HTF systems.
