Moisture removal / Desiccation system

desiccation system fluidry

Dynalene’s Fluidry® product line consists of moisture removal (or desiccation) systems which helps in maintaining low moisture content in hydrocarbons, silicone-based heat transfer fluids and transformer oil (insulation oil). These high-capacity molecular sieve-based systems are also designed for effective moisture removal from refrigerants and lubricants.

Maintaining low moisture content in low- and high-temperature heat transfer fluids is crucial to attaining or maintaining designed system efficiency. Moisture, which can enter into a fluid system due to improper seals, improper handling, system leaks, or malfunctioning driers, can cause system failures. Moisture in hydrocarbons operated below 0°C can form ice crystals that may clog valves and form a coating on heat exchanger surfaces, affecting the operational efficiency of the refrigeration system. In high-temperature applications, any moisture could turn to steam, which may increase internal pressure resulting in an eruption. Additionally, moisture in hydrocarbon- and silicone-based heat transfer fluids causes formation of acids, resulting in metal corrosion and chemical damage to gasket materials

Quick Links

Dynalene’s Fluidry® series desiccation system product offering provides an effective moisture removal solution in the hydrocarbon and silicone based heat transfer fluids, which is easy to handle and economical. Contact us today at 610.262.9686 or email at info@dynalene.com and let us help you determine the appropriate moisture removal solution for your application.

Features:

  • Our product line caters to a wide variety of fluid chemistries, flow rates and pressure rates.
  • Our product line caters to a wide variety of fluid chemistries, flow rates and pressure rates.
  • The products are designed for maximum moisture removal.
  • The inlet and outlet connections can be customized to cater to the customer’s requirements.
  • Some products contain quick disconnect with automatic shut-off for easy handling and to avoid fluid spills.
  • The desiccation system can be custom-built to fit your specifications, which includes choice of pipe fitting, material of construction, gasket material, pressure rating, flow rate, and water removal capacity.
  • The desiccants are designed for maximum moisture adsorption capacity at lower temperatures.

Product line

Fluidry® includes,

Quick Quote

The SX series desiccation system can be used for bench top or low flow rate desiccation applications.

The TX series desiccation systems are designed to handle higher flow rates.

The HX series desiccation systems are designed to handle higher flow rates. They are equipped with quick disconnect with automatic shut-off for easy handling and to avoid fluid spills.
M series desiccant is an alkali alumino silicate based molecular sieve which is designed for maximum moisture adsorption capacity in hydrocarbon based applications.

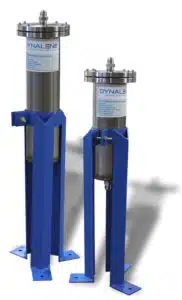

SX Series

The SX series desiccation system is designed for low-flow rate moisture removal. The system can handle moisture removal from hydrocarbons, silicone oils, transformer oil, refrigerants, and lubricants.

Features

  • Works effectively for low flow rate applications.
  • Inlet and outlet available in NPT or flared connections.
  • Uses replaceable desiccant bags for easy desiccant change-out.
  • Equipped with a carbon steel stand, and the height of the system can be adjusted to desired level.
  • The Desiccation system can be custom-built to fit your specifications, which includes choice of inlet and outlet connections, gasket material and pressure rating.
fluidry sx series

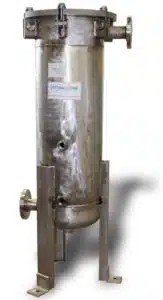

TX Series

The TX series desiccation system is designed for moderate- to high-flow rate moisture removal. This system is equipped with internal filters that prevent desiccant particulates from entering the fluid stream. The system can handle moisture removal from hydrocarbons, silicone oils, transformer oil, refrigerants, and lubricants.

Features

  • Works effectively for moderate to high flow applications.
  • Inlet and outlet available in NPT or flange connections.
  • Contains internal filters that prevent particulate contaminants from the desiccant entering the fluid stream.
  • Includes drain port and ports that can be used to connect pressure gauges.
  • Can be custom built to fit your specifications, including choice of inlet and outlet connections, gasket material, and pressure rating.
fluidry TX series

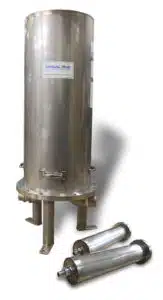

HX Series

fluidry HX series

The HX series moisture removal system is a high performance device that is specifically designed for user-friendly experience in maintaining low moisture content in a variety of non-aqueous heat transfer fluids as well as refrigerants and lubricants.

Dynalene’s desiccation system has numerous advantages compared to the traditional desiccation system. They are:

Traditional Desiccation System

DYD Series Desiccation System

Fluid spillage

No spills

Creates a flammable atmosphere

Non flammable atmosphere

Odor when desiccant change out

No odor

Unfriendly and heavy desiccant baskets

User friendly and easy cartridge change out

Designed for a particular flow rate

Adjustable for different flow rates based on moisture content in the fluid loop

Features

  • The system is equipped with connections for gauge and to provide a nitrogen blanket or vacuum, which can help avoid internal ice formation when operating at low temperatures.
  • Drain port is provided in the system that can help drain fluid if any internal spills.
  • The cartridges in the system contain quick disconnect with automatic shut off for easy handling and to avoid fluid spills.
  • The system design has the capability to be adjusted to operate at different flow rates based on moisture content in the fluid loop.
  • The Desiccation system can be custom built to fit your specifications, which includes choice of pipe requirement, gasket material, material of construction, pressure rating, flow rate and water removal capacity.

Specification

Size

2, 4, 6 and 8 cartridge system

Flow rate

3 to 16 GPM

Water Capacity at @ 25°C

1 to 5 lbs per cartridge change out

Material of construction

Carbon Steel, 304 Stainless Steel and 316 Stainless Steel

Gasket material

Buna-N, Viton® and Teflon® (Customization available)

Inlet/outlet type

NPT and flange connection (Customization available)

Pressure rating

100 and 150 PSI

Pipe connections

1, 2, 3, 4 inch

Support stand

Custom tripod leg assembly or stands with wheels

Footprint of the system

19 x 52 inch to 33 x 52 inch

Cartridge size

5 x 20 inch

M Series

M series desiccant is an alkali aluminosilicate-based molecular sieve that is designed for maximum moisture adsorption capacity in hydrocarbon and silicone heat transfer fluids. These desiccants are also used in drying lubricants, natural gas, paints, etc.

Application

  • Refrigerant drying.
  • CO2 drying in LPG, air, inert gas, natural gas and other atmospheric gases.
  • Moisture removal in paint.

Customization

Along with the standard filter vessels, we can also custom build vessels that meet your requirements. Contact us today at 610.262.9686 or email at info@dynalene.com and discuss your application with Dynalene’s fluid experts today.
